QCT Switches – EXALIT Pte Ltd

QuantaMesh Ethernet And Bare Metal Switches

High Performance, Reliable And Efficient Datacenter Networking

Overview

QCT provides high performance, reliable and efficient network switches for data center and cloud applications. A comprehensive product portfolio delivers a wide range of switches to fulfill different deployment requirements. Product lines include the QuantaMesh Ethernet Switch (QCT QNOS based switches) and the Bare Metal Switch (open switch platform). QNOS based QuantaMesh Ethernet Switches provide comprehensive features for all types of data center applications. The features include network automation, virtualization, high availability, and data center oriented. The Bare Metal Switches provide open standard hardware platforms allowing customers to run their choices of NOS. ONIE is preloaded for users easy to adopt 3rd party software.

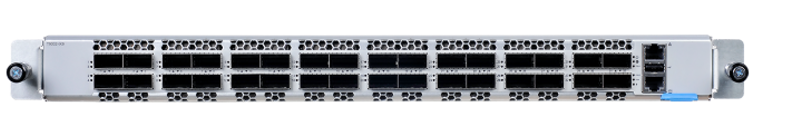

QuantaMesh T7032-IX7D

The Next Wave 100G Ethernet Switch for Data Center and Cloud Computing

‣ 32 x 40/100GbE QSFP28

‣ OSPF, BGP4 with ECMP

‣ VXLAN

‣ Multi-Chassis Link Aggregation (MLAG)

‣ Network Automation

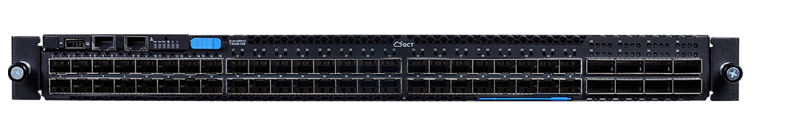

QuantaMesh T4048-IX8D

The Next Wave 25G Ethernet Switch for Data Center and Cloud Computing

‣ 48 x 10/25GbE SFP28 + 8 x 40/100GbE QSFP28

‣ OSPF, BGP4 with ECMP

‣ VXLAN

‣ Multi-Chassis Link Aggregation (MLAG)

‣ Network Automation

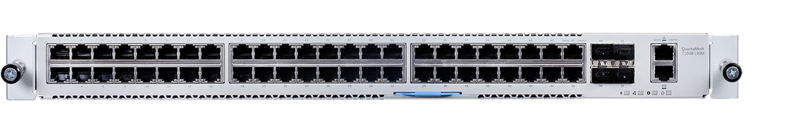

QuantaMesh T1048-LB9M

The Next Generation Data Center Rack Management Switch

‣ 48 10/100/1000 BASE-T + 4 10/25G SFP28

‣ Software Defined Network (SDN)

‣ Simplified Management

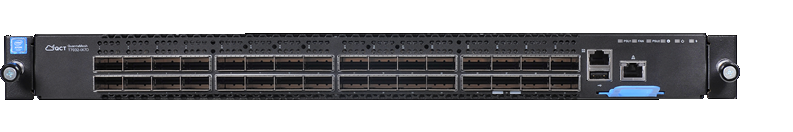

QuantaMesh BMS T9032-IX9

The 400G switch for Hyper Scale Data Center

‣ 32 x 400GbE QSFP-DD

‣ PAM4 Based Switch

‣ ONIE Pre-loaded

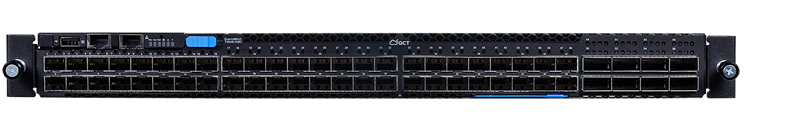

QuantaMesh BMS T4048-IX8

The Next Wave Enterprise Data Center 25G Switch

‣ 48 x 10/25GbE SFP28 +8 x 40/100GbE QSFP28

‣ ONL Ready

‣ ONIE Pre-loaded

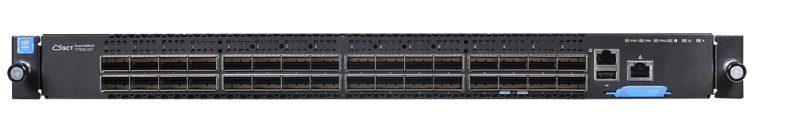

QuantaMesh BMS T7032-IX7

The Next Wave Enterprise Data Center 100G Switch

‣ 32 x 40/100GbE QSFP28

‣ ONL Ready

‣ ONIE Pre-loaded

QuantaMesh Ethernet Switches with QNOS provide comprehensive Layer 2 and Layer 3 features

QCT Network Operating System (QNOS) is the modern software platform for data centers and cloud networks which is based on Broadcom’s ICOS platform for tradition L2/L3 features as well as software-defined network (SDN) applications. Inherited from ICOS, QNOS is a proven protocol stack solution that can run on several control plane processors including PowerPC, x86, and ARM with robust operating performance and flexible deployment. For the fundamentals of modern data center networks such as network automation, virtualization, high availability and data center oriented, QNOS provides a comprehensive feature set to cover all types of applications.
