XA NB3I-E12

Products\ NVIDIA HGX
DataSheet

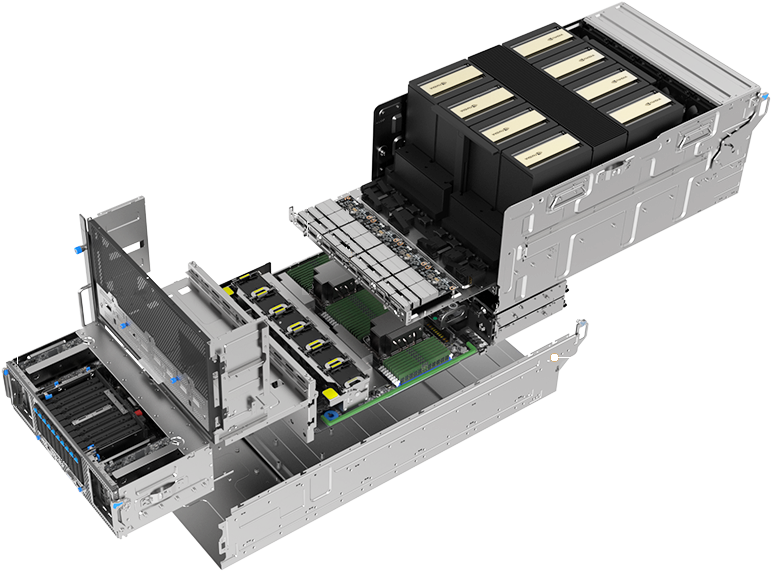

9U NVIDIA HGX™ B300 8-GPU server with dual Intel® Xeon® 6 Scalable processors, designed for heavy AI workloads with 8 B300 GPU, 8 embedded CX8 Infiniband, 5 PCIe slots, 32 DIMM, 10 NVMe, dual 10Gb LAN

Next-Level 8-GPU Server for Enterprise / CSP heavy AI workloads

Equipped with NVIDIA Blackwell HGX B300 8-GPU and dual Intel® Xeon® 6 Scalable processors, ASUS XA NB3I-E12 is designed for heavy AI workloads with 8 embedded CX8 InfiniBand on GPU, 5 expansion PCIe slots, 32 DIMM, 10 NVMe, and dual 10Gb LAN. It transforms data into intelligence for efficient real-world automation and is ideal for large enterprises and cloud service providers running large language models (LLMs), research institutions and universities performing scientific computing, as well as financial and automotive sectors focused on AI model training and inference.

KEY FEATURES

  • Powered by dual Intel® Xeon® 6700P processors, supporting a 350W TDP
  • Seamless GPU-to-GPU interconnect via NVIDIA® NVLink™, providing 1800GB/s bandwidth for optimized scalability
  • Embedded 8pcs CX8 InfiniBand on GPU, supports XDR/800G per SXM
  • Modular design with minimal cable usage, enhancing assembly speed and thermal efficiency
  • Integration of advanced NVIDIA technologies, leveraging the full capabilities of NVIDIA GPUs,
  • NVIDIA BlueField®-3 DPUs, NVIDIA® NVLink™, NVSwitch, and networking
  • Exceptional power efficiency, supported by 5+5 80 PLUS® Titanium power supplies

Specifications

Processor / System Bus

2 x Socket
6th Intel® Xeon® Processor Scalable Family (Up to 350W)

Memory

Total Slots:
32 (8 channel per CPU, 16 DIMM per CPU)
Capacity:
Maximum up to 4TB per CPU socket
Memory Type:
DDR5 6400 RDIMM/ 3DS RDIMM (2DPC)
Memory Size:
128GB, 96GB, 64GB

Expansion Slots

SKU1: 4 x PCIe Gen5 slots
[PCIe Switch directly]
-4 x PCIe Gen5 x16 link
SKU2: 5 x PCIe Gen5 slots
[PCIe Switch directly]
-4 x PCIe Gen5 x16 link
-1 x PCIe Gen5 x8 link (Raid Only)
*Support PCIe x16 link support DPU

Networking

2 x 10 Gigabit LAN ports (Intel X710-AT2 Controller)
1 x Management Port

ASUS Control Center
ASUS ASMB11-iKVM (on-board) EDIT

Storage

Optional Kits:
-Broadcom MegaRAID 9540-8i

Front I/O Ports

2 x USB 3.2 ports
1 x VGA port
2 x 10GbE RJ45 LAN port
1 x RJ-45 Mgmt LAN port

Switch/LED

Front :
1 x Power Switch/LED
1 x Location Switch/LED
1 x Message LED
1 x Port80 LED (Q-Code)
LAN 1-2 LED (on NIC module)

Power Supply

5+5 3200W 80 PLUS Titanium Power Supply
