ASUS RS700-E11-RS12U

Products\ Datacenter Servers
DataSheet

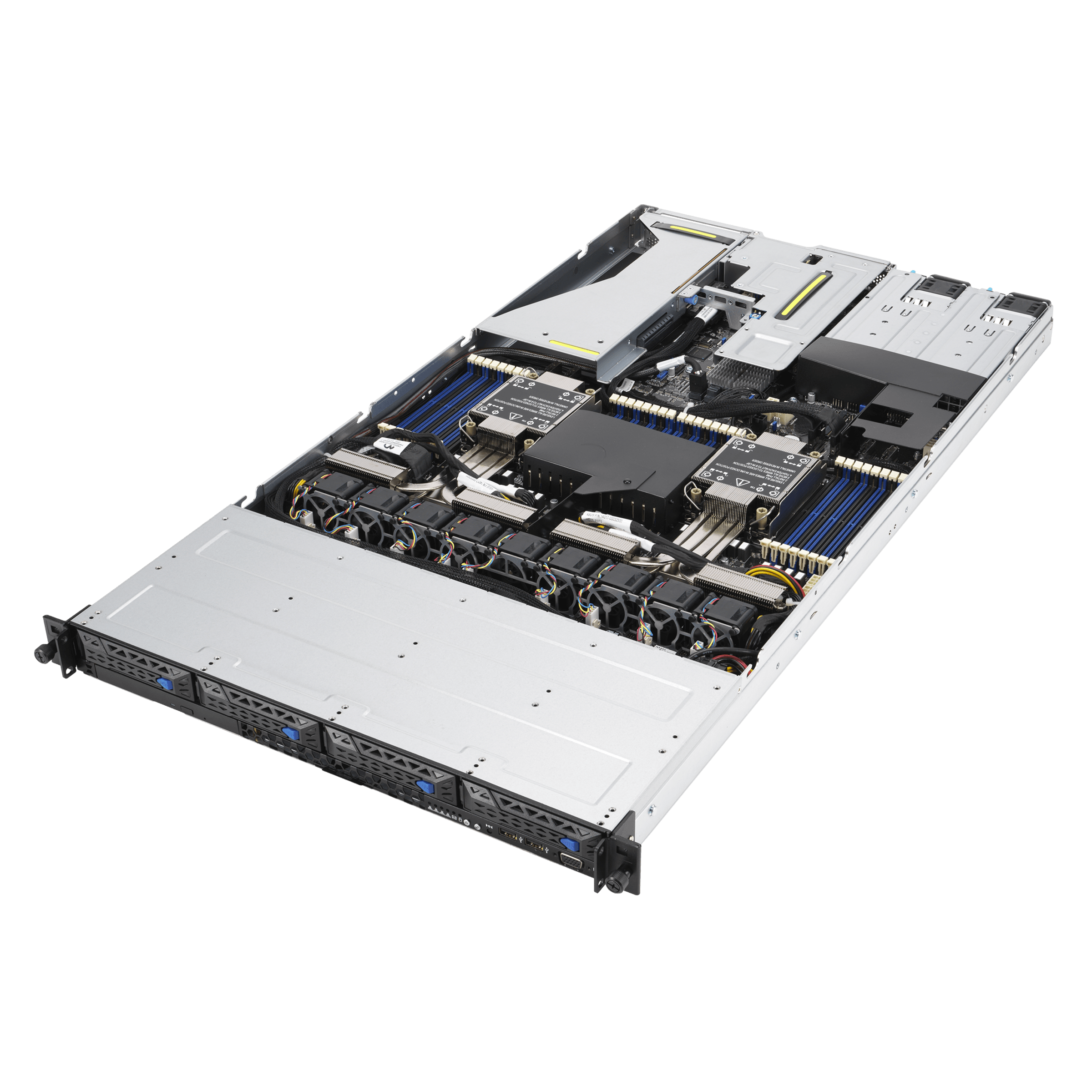

1U dual-socket server powered by 5th Gen Intel Xeon Scalable processors that supports 32 DIMMs, 4 PCIe 5.0 slots, 12 NVMe, 1 dual-slot GPU, OCP 3.0, ASUS ASMB11-iKVM

Scalable Storage Solution

This server features scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security.

KEY FEATURES

  • Powerful performance: Powered by 5th Gen Intel® Xeon® Scalable processors unleash up to 21%-greater general-purpose performance per watt, significantly improving AI inference and training
  • Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, and 4 PCIe 5.0 slots for higher bandwidth and system upgrade
  • Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
  • Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
  • Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
  • Ready for AI and HPC workloads: Supports 1 dual-slot GPU, including Intel Data Center GPU Flex series and NVIDIA A100

Specifications

Processor / System Bus

4th/5th Intel®Xeon® Processor Scalable Family

Core Logic

Intel® C741 Chipset

Memory

Total slot:
32 (8-channel per CPU, 16 DIMM per CPU)
Capacity:
Maximum up to 4TB
Memory type:
4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC)
5th: 5600/4800 MHz (1DPC)/4400(2DPC)
Memory size:
64GB, 32GB, 16GB RDIMM
256GB, 128GB RDIMM 3DS

Expansion Slots

Up to 3+1 PCIe slot
1 x OCP 3.0 or PCIe G5 x16 FHFL
1 x PCIe G5 x16 FHFL
1 x PCIe G5 x8. LP (Internal)
1 x PCIe G5 x16, LP

Storage

12×2.5” NVMe/SATA/SAS* hot-swap bay
(HBA/RAID is required to support SATA/SAS hard drives)

12 x 2.5″ hot-swap bay
2 x M.2 slot

Front I/O Ports

2 x USB 3.2 Gen1 ports

Rear I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Management LAN port
2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional)

Power Supply

1+1 Redundant AC: 1200W/1600W 80 PLUS Platinum/Titanium Power Supply
