Products\ Datacenter Servers

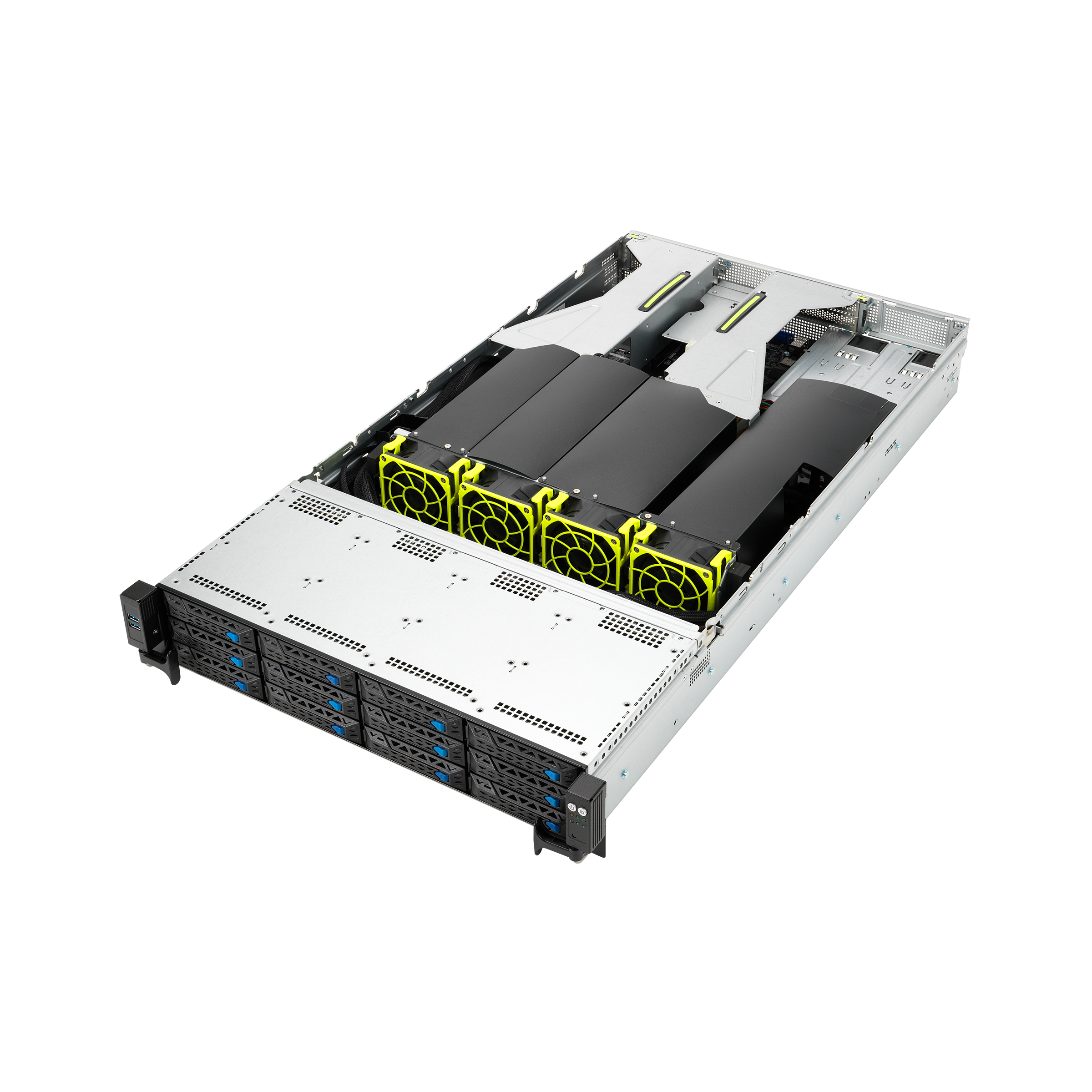

AMD EPYC™ 7003 2U single-socket server that supports up to 16 DIMM, 2 dual-slot GPUs, 12 NVMe, 5 PCIe 4.0 slots, OCP 3.0, M.2 and ASUS ASMB10-iKVM

ASUS RS520A-E11-RS12U was designed to accelerate application performance leveraging accelerator cards and storage scalability. With the CPU and memory configured in a front parallel design that enables efficient airflow for excellent thermal performance, RS520A-E11-RS12U is optimized for rack placement. Featuring the single processor in a 2U chassis, RS520A-E11 series delivers the right-sized rack server dimensions for price sensitive applications and meets the demanding computing requirements.



⦿ Powered by AMD EPYC 7003 processor with 64 cores, 128 threads and support for a maximum TDP of up to 280 watts per socket

⦿ GPU-optimized design allows two dual-slot or four single-slot GPUs for AI workloads

⦿ A total of 12 storage bays in combination of NVMe/SATA/SAS drives on front panel, and 6 direct more on middle and rear panels enable extensive storage and high-throughput performance

⦿ Up to five PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates

⦿ Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller

⦿ Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency

⦿ Air cooling with heatsink achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers
