QuantaGrid D54Q-2U
2U dual-socket server powered by 4th Gen Intel Xeon Scalable Processors with up to 4x UPI of 16 GT/sec CPU interconnect speed.
Scalability, Flexibility, Capability, All in 2U
Built-in AI acceleration: support up to 2x dual-width accelerators in 2U systems
Flexible SKU options from 3.5″, 2.5″ to E1.S SKUs, all ready for PCIe Gen5
Optional rear NVMe as booting device, or high-speed NIC with optional HHHL slots
Up to 24x E1.S or U.2 drives, targeting high-performance hot-tier storage, HPC, and enterprise workloads
KEY FEATURES
Powered by dual 5th/4th Gen Intel Xeon Scalable Processors with up to 4x UPI of 20 GT/sec CPU interconnect speed.
Advanced system cooling architecture supporting the top bin 350W TDP CPU under air cooling and 385W under liquid cooling.
Up to 10x PCIe Gen5 expansion slot and DC-SCM architecture to meet different configurations.
Up to 2x dual-width accelerators supported for AI inference workloads.
System optimized for cloud, enterprise, AI, HPC, network, security, and storage workloads.
Specifications
Processor / System Bus
4th/5th Intel®Xeon® Processor Scalable Family
350W for air cooling
385W for liquid cooling
Core Logic
Intel® C741 Chipset
Memory
Total slot:
32
Capacity:
Maximum up to 8TB
Memory type:
5600 MT/s DDR5 RDIMM / 3DS RDIMM
Memory size:
16GB, 32GB, 64GB, 128GB, 256GB
Expansion Slots
| Default Configuration | [General Config] (2) PCIe 5.0 x16 OCP 3.0 SFF slot (2) PCIe 5.0 x16 FHHL + (4) PCIe 5.0 x8 FHHL slot Optional (2) PCIe 4.0 x16 HHHL slot |
| SKU – #1 | [Dual Width GPU Config] (2) PCIe 5.0 x16 OCP 3.0 SFF slot (2) PCIe 5.0 x16 FHFL + (2) PCIe 5.0 x16 FHHL slot Optional (2) PCIe 4.0 x16 HHHL slot |
| SKU – #2 | [Single Width GPU Config] (2) PCIe 5.0 x16 OCP 3.0 SFF slot (4) PCIe 5.0 x16 FHHL slot Optional (2) PCIe 4.0 x16 HHHL slot |
| SKU – #3 | [All Flash Config-1] (2) PCIe 5.0 x16 OCP 3.0 SFF slot (2) PCIe 5.0 x16 FHHL slot |
| SKU – #4 | [All Flash Config-2] (2) PCIe 5.0 x16 OCP 3.0 SFF slot (1) PCIe 5.0 x16 FHHL + (2) PCIe 5.0 x8 FHHL slot |

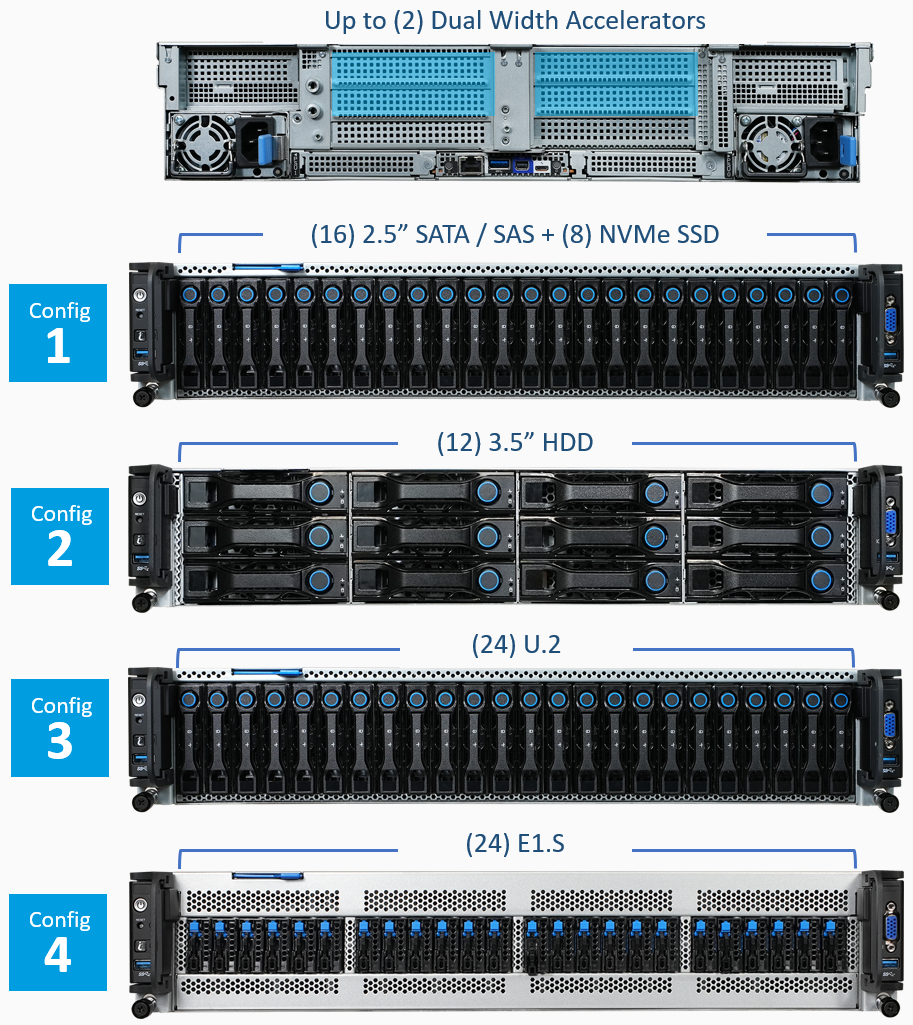

Storage
| Default Configuration | 2.5″ Hot-plug 3.5″ Hot-plug SATA/ SAS/ NVME support |
| SKU – #1 | [12x LFF Tiered]: Front Storage: (12) 3.5″/2.5″ hot-plug SATA/SAS/NVMe drives Rear Storage: (2) 2.5″ hot-plug NVMe/SATA/SAS drives (optional) |
| SKU – #2 | [SFF Tiered]: Front Storage: (16) 2.5″ hot-plug SATA/SAS drive + (8) 2.5″ hot-plug NVMe SSD Rear Storage: (2) 2.5″ hot-plug NVMe drives (optional) |
| SKU – #3 | [SFF 24NVMe/U.2]: Front Storage: (24) 2.5″ hot-plug SATA/SAS/NVMe drive |
| SKU – #4 | [E1.S]: Front Storage: (24) E1.S hot-plug NVMe drives |
Front I/O Ports
Power/ID/Reset Buttons
Power/ID/Status LEDs
(2) USB 3.0 ports
(1) VGA port
Rear I/O Ports
(1) USB 3.0, (1) Mini display port, (1) ID LED, (1) PFR/PWR LED, (1) PFR/PWR Button, (1)COM Port (micro USB type-B), (1)RJ45
Power Supply
1+1 High efficiency redundant hot-plug Titanium 1600W/2000W/2600W/2700W AC PSU
