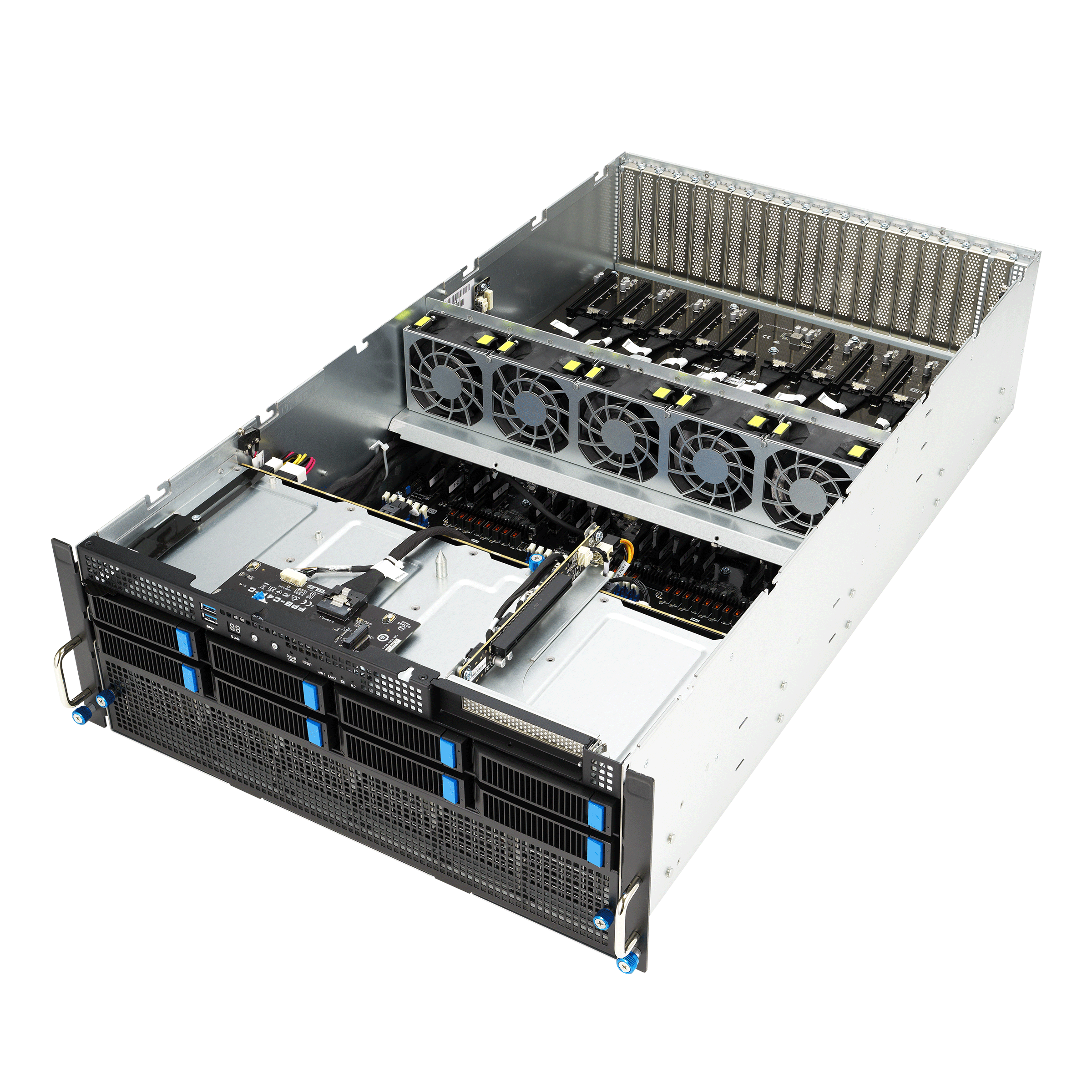

ASUS ESC8000A-E12
AMD EPYC™ 9004 dual-processor 4U GPU server that supports eight dual-slot GPUs, liquid cooling solution, up to 24 DIMM, 11 PCIe 5.0 slots, eight NVMe, four 3000W Titanium power supplies, OCP 3.0 and ASMB11-iKVM
Accelerate performance for HPC and AI workloads
Eight dual-slot GPU compute in 4U
KEY FEATURES
- Powerful performance: Powered by AMD EPYC™ 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket
- AI and HPC workloads ready: Up to eight dual-slot active or passive GPUs, NVIDIA NVLink® bridge, and NVIDIA Bluefield DPU support to enable performance scaling
- Power-efficient system design: Independent CPU and GPU airflow tunnels for thermal optimization and support for up to four 3000W Titanium redundant power supplies for uninterrupted operation
- Comprehensive cooling solutions: Designed for both liquid cooling and enhanced air cooling based on CPU TDP for versatile workloads
- Scale-up storage and expansion design: A total of eight bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and 11 PCIe 5.0 slots for higher bandwidth and system upgrade
- Flexible networking module design: Optional OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
Specifications
Processor / System Bus
2 x Socket (LGA 6096)
AMD EPYC™ 9004 series(up to 400W)
4th Generation AMD EPYC Processors with AMD 3D V-Cache technology
Form Factor
4U
Memory
Total Slots:
24 (12 channel per CPU, 12 DIMM per CPU)
Capacity:
Maximum up to 3TB per CPU socket
Memory Type:
DDR5 4800/4400 RDIMM/ 3DS RDIMM
Memory Size:
64GB, 32GB, 16GB RDIMM
256GB, 128GB RDIMM 3DS
Expansion Slots
8 x PCIe slots (Gen5 x16 link, FH,FL) for dual-slot GPU cards
SKU-1 (3PCIe)
Front: 1 x PCIe slot (Gen5 x8 link ,LP,HL) for HBA/RAID cards
Rear: 1 x PCIe slot (Gen5 x16 link) for NIC
1 x PCIe slot (Gen5 x8 link) for NIC
SKU-2 (2PCIe + 2NVMe)
Front: 1 x PCIe slot (Gen5 x8 link ,LP,HL) for HBA/RAID cards
Rear: 1 x PCIe slot (Gen5 x16 link) for NIC
SKU-3 (1PCIe + 1OCP3.0 + 2NVMe)
Front: 1 x PCIe slot (Gen5 x8 link ,LP,HL) for HBA/RAID cards
Rear: 1 x OCP3.0 NIC socket (Gen5 x16 link)
Storage
8 x 3.5″/2.5″ Front Hot-swap Storage Bays
(Backplane supports up to 8 x NVMe*/SATA/SAS**)
*NVMe support on selected SKUs
*SAS support requires an optional HBA/RAID card
1 x M.2 Socket, supports up to 22110 type (PCIe Gen3 x4 link)
Front I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
Rear I/O Ports
1 x COM port
2 x 10GbE/1GbE LAN ports (RJ45, build for order)
1 x Management port (RJ45)
Power Supply
2+2 Redundant 2600W/3000W 80 PLUS Titanium Power Supply
2+1 Redundant 3000W 80 PLUS Titanium Power Supply
Rating: 220-240 Vac, 15.5A(x4), 50-60 Hz
