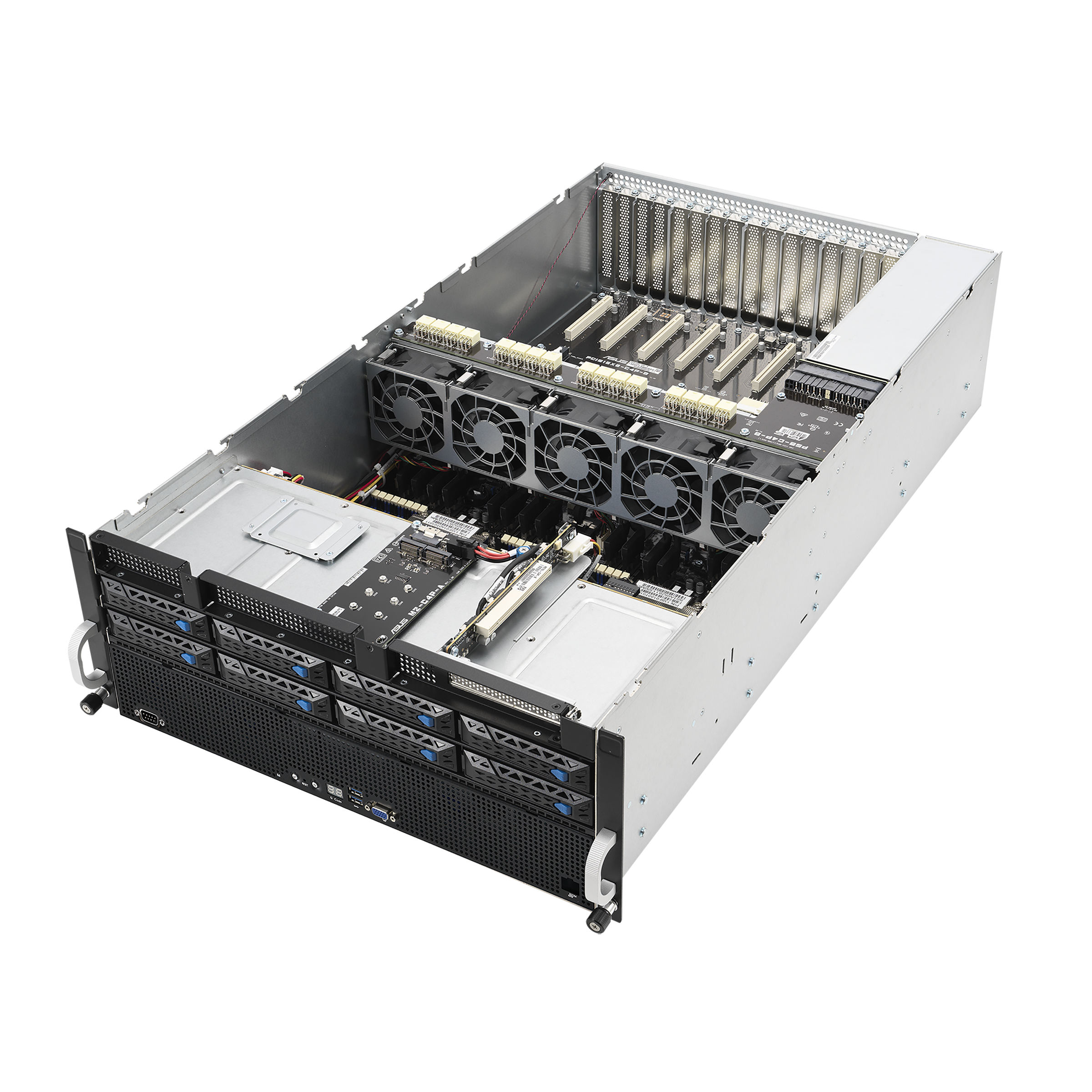

ASUS ESC8000A-E11
AMD EPYC™ 7003 4U dual-socket GPU server featuring eight dual-slot GPUs, dual NVMe, dual M.2, OCP 3.0, four 3000 W Titanium power supplies and ASUS ASMB10-iKVM
High-density GPU server with hybrid computing power
KEY FEATURES
- Fueled by dual-socket AMD EPYC™ 7003 series processors supporting a 280 W TDP
- Up to 11 PCIe® 4.0 slots enables higher bandwidth and improved data transfer rates
- GPU-optimized design allows eight dual-slot active or passive GPUs, including NVIDIA® A100 or AMD Instinct™ MI100
- Supports NVIDIA NVLink® bridge to enable performance scaling
- Up to eight 3.5” or 2.5” flexible storage bays to enable extensive storage and high-throughput performance
- High power efficiency with four redundant 3000 W 80 Plus Titanium power supplies
- Optimized power-saving thermal design with independent CPU and GPU airflow tunnels
- Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
Specifications
Processor / System Bus
2 x Socket SP3 (LGA 4094)
AMD EPYC™ 7003 Series
Memory
Expansion Slots
8 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards
SKU-1 (2PCIe + 2NVMe)
Front: 1 x PCIe x16 slot (Gen4 x8 link, FH,HL)
Rear: 1 x PCIe x16 slot (Gen4 x16 link, FH,HL)
SKU-2 (1PCIe + 1OCP3.0 + 2NVMe)
Front: 1 x PCIe x16 slot (Gen4 x8 link, FH,HL)
Rear: 1 x OCP3.0 NIC socket (Gen4 x16 link)
SKU-3 (3PCIe)
Front: 1 x PCIe x16 slot (Gen4 x8 link, FH,HL)
Rear: 1 x PCIe x16 slot (Gen4 x16 link, FH,HL)
1 x PCIe x16 slot (Gen4 x8 link, LP,HL)
SKU-4 (3PCIe + 2NVMe)
Front: 1 x PCIe x16 slot (Gen4 x8 link, FH,HL)
Rear: 1 x PCIe x16 slot (Gen4 x8 link, FH,HL)
1 x PCIe x16 slot (Gen4 x8 link, LP,HL)
Storage
8 x 3.5″ Hot-swap Storage Bays
(Backplane Supports 4 x SATA/SAS + 4 SATA/SAS/NVMe Devices)*
Modular support 2 x M.2 sockets (Gen4 x4 link, up to 22110) by SKU configuration.
*To support SATA/SAS drives, an additional HBA/RAID card is required.
*To support NVMe SSD, from CPU direct signal, the Max. Qty is 2. If uesrs equip with Broadcom 9560-16I card, the Max. Qty is 4.
Front I/O Ports
2 x USB 3.2 Gen1 ports
Rear I/O Ports
1 x Management port (RJ45)
Power Supply
2+2 Redundant 2200W 80 PLUS Platinum Power Supply
Rating: 100-127/200-240Vac,14A/12.6A,50-60Hz Class I
2+2 Redundant 3000W 80 PLUS Titanium Power Supply
Rating: 220-240Vac,15.5A,50-60Hz Class I
