Products\ GPU Rack Servers

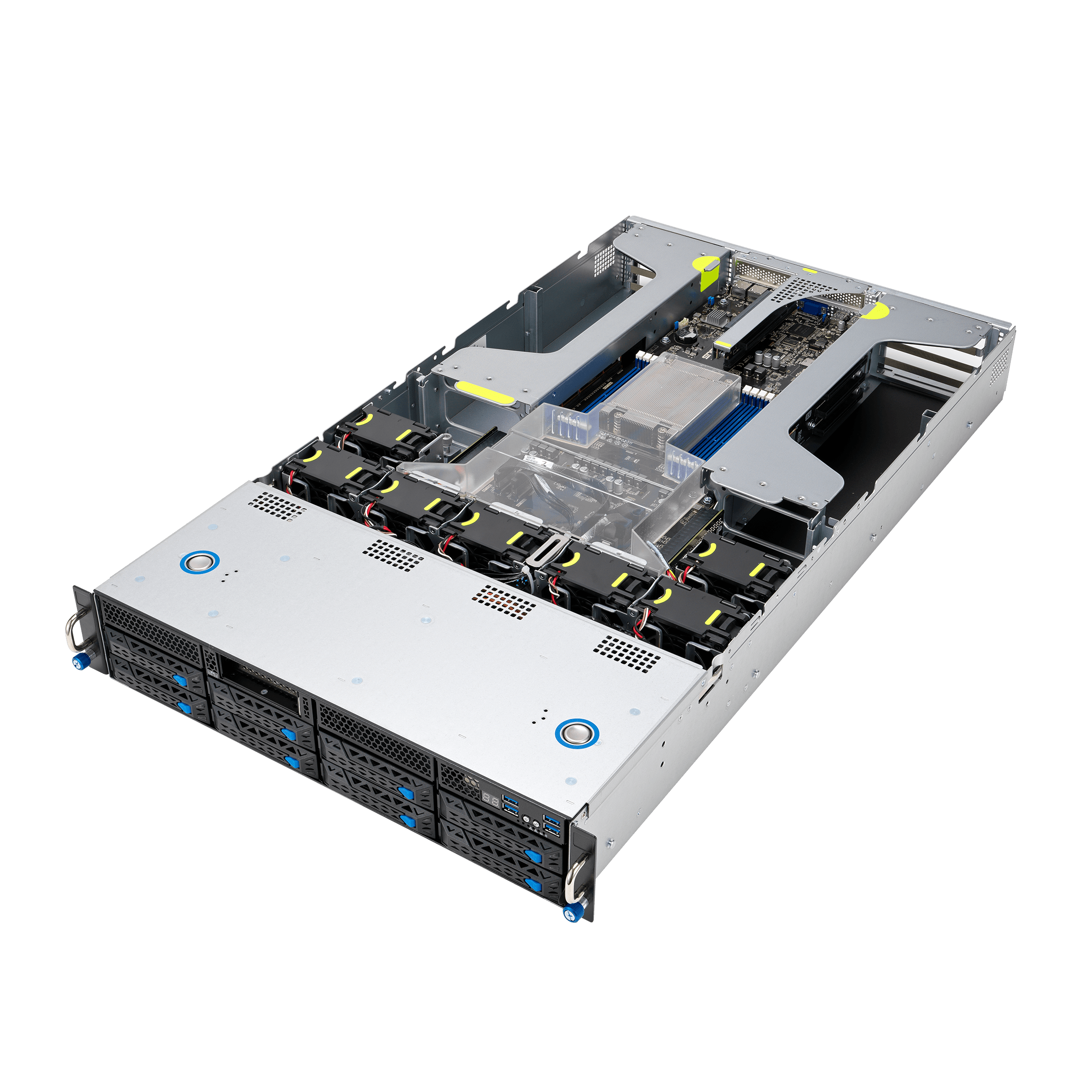

AMD EPYC 7003 & 7002 2U single-socket GPU server supports up to 8 single-slot GPUs, 8 DIMM, PCIe 4.0, M.2, NVMe, OCP 3.0, Dual LAN, ASUS ASMB10-iKVM and max. TDP up to 280 W

GPU and FPGA support

ESC4000A-E10 features a powerful GPU architecture that supports up to four double- slot or eight single-slot GPUs in a 2U chassis, including NVIDIA® A100 and AMD Instinct™ MI100 accelerator to meet the demands of AI and HPC, and to securely run workloads in virtualization environment. It is also a Xilinx Alveo-qualified server to provide optimized acceleration for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.


  • Powered by AMD EPYC™ 7003&7002 processor with 64 cores, 128 threads, and support for max. TDP of up to 280 watts per socket
  • Up to eleven PCIe® 4.0 slots enables higher bandwidth and improved data transfer rates
  • GPU-optimized design allows four double-slot or eight single-slot GPUs, including NVIDIA® A100, Tesla® T4 or Quadro®
  • A Xilinx Alveo-qualified server support for Alveo U50 to provide optimized acceleration for workloads across cloud and on-premises data centers
  • Supports NVIDIA® NVLink bridge to enable scaling of performance to meet the demands of visual computing workloads
  • A choice of PCIe Gen 4.0, OCP 3.0, NVMe and M.2 on the front panel offer flexibility, performance and scalability for changing business needs
  • High power efficiency with redundant 2200W or 1600W Platinum power supplies
  • ASUS thermal control technology offers more efficient power consumption for large-scale environments
  • ASUS performance tuning technology improves workload throughput to achieve optimal server performance
  • Complete IT infrastructure remote management with ASMB9 (out-of-band) and ASUS Control Center (in-band)
  • Two hot-plug, hot-swap fans design for fully redundancy protection and thermal efficiency


Processor / System Bus

1 x Socket SP3 (LGA 4094)
AMD EPYC™ 7002 Series
AMD EPYC™ 7003 Series


Total Slots :
8 (8-channel, 1DPC)
Capacity :

Maximum up to 2048GB RDIMM
Memory Type :
Memory Size :
256GB, 128GB, 64GB, 32GB, 16GB

Expansion Slots

 – 4 x PCIe x16 slots (Gen4 x16 link, FH, FL) for dual-slot GPU cards or
    8 x PCIe x16 slots (Gen4 x8 link, FH, FL) for single-slot GPU cards
 – 2 x PCIe x16 slots (Gen4 x16 link, LP, HL)
 – SKU-1:
    1 x PCIe x8 slot (Gen4 x8 link, LP,HL)
 – SKU-2:
    1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or
    1 x OCP3.0 slot (Gen4 x8 link) by switching cables
– SKU-3:
    1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or
    2 x M.2 sockets (Gen4 x4 link, up to 22110 module) by switching cables


Storage Controller :
CPU Integrated
Optional kits Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
ASUS PIKE II 3108-8i 8-port SAS 12G RAID card

8 x 3.5″ Hot-swap Storage Bays
(Backplane Supports 6 x SATA/SAS + 2 x SATA/SAS/NVMe Devices)*
1 x M.2 socket (Gen4 x4 link, up to 22110 on-motherboard)

Front I/O Ports

4 x USB 3.2 Gen1 ports

Rear I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port
2 x 1GbE LAN ports (RJ45)
1 x Management port (RJ45)

Power Supply

1+1 Redundant 1600W 80 PLUS Platinum Power Supply C-14 power inlet
Rating: 100-127Vac/200-240Vac,12.9A/9.5A,50-60Hz
1+1 Redundant 2200W 80 PLUS Platinum Power Supply C-20 power inlet
Rating: 100-127Vac/200-240Vac,14A/12.6A,47-63Hz
