ASRock 4U8G-TURIN2

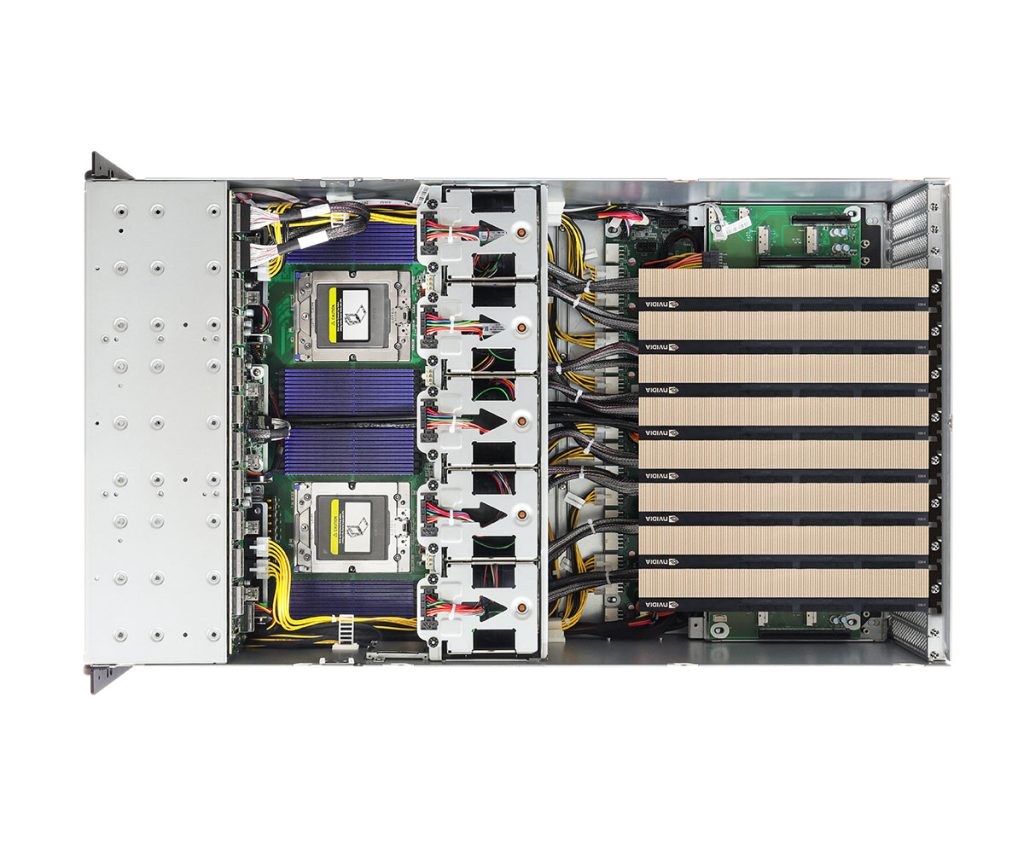

AMD EPYC™ 9005/9004 dual-processor 4U server that supports eight dual-slot NVIDIA® H200 GPUs or NVIDIA RTX PRO™ 6000 Blackwell Server Edition, up to 20 Hot-swap 2.5″ SATA drive bays and up to four U.2 NVMe drives.
- TDP up to 500W
- 4U Rackmount with 3+1, 80-PLUS
- Titanium, 2700W CRPS
- Dual Socket SP5 (LGA 6096), supports AMD EPYC™ 9005*/9004 (with AMD 3D V-Cache™ Technology) and 97×4 series processors
- 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
- 4 hot-swap 2.5″ NVMe (PCIe5.0 x4) drive bays, 20 Hot-swap 2.5″ SATA drive bays
- 8 FHFL dual-slot PCIe5.0 x16, 1 FHHL PCIe5.0 x8
- Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
- 1 OCP NIC 3.0 (PCIe5.0 x8)
- 2 RJ45 (1GbE) by Intel® i350
- Remote Management (IPMI)
Specifications
Processor / System Bus
2 x Socket SP5 (LGA 6096)
AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97×4 series processors
* Up to 500W TDP, TDP support varies by configuration
Form Factor
4U
Memory
Total Slots:
24 (12 channel per CPU, 12 DIMM per CPU)
Capacity:
Maximum up to 3TB per CPU socket
Memory Type:
DDR5 6000//5600 RDIMM
Memory Size:
128GB, 64GB, 32GB RDIMM
Expansion Slots
24-port NVMe/SATA/SAS* passive backplanes
*SAS drive is only supported with additional RAID/HBA cards
Rear: 8 FHFL dual-slot PCIe5.0 x16 (CPU direct link)
Front: 1 FHHL PCIe5.0 x8
Storage
4 Hot-swap 2.5″ NVMe (PCIe5.0 x4) drive bays
20 Hot-swap 2.5″ SATA/SAS* drive bays
*Additional RAID/HBA card required to support the 20 x 2.5″ SATA/SAS drive bays
Front I/O Ports
Power button w/ LED, Reset button, NMI button, UID button
System fault LED, HDD activity LED
2 RJ45 (1GbE) by Intel i350, shares with Rear IO
1 dedicated IPMI, shares with Rear IO
4 Type-A (USB3.2 Gen1)
1 DB15 (VGA)
Rear I/O Ports
1 UID button
1 DB15 (VGA)
2 Type-A (USB3.2 Gen1)
2 RJ45 (1GbE) by Intel i350, shares with Front Panel
1 dedicated IPMI, shares with Front Panel
Power Supply
3+1 redundant 3200W 80 PLUS Titanium power supply
20-240 Vac, 16A (x4) 50/60Hz
