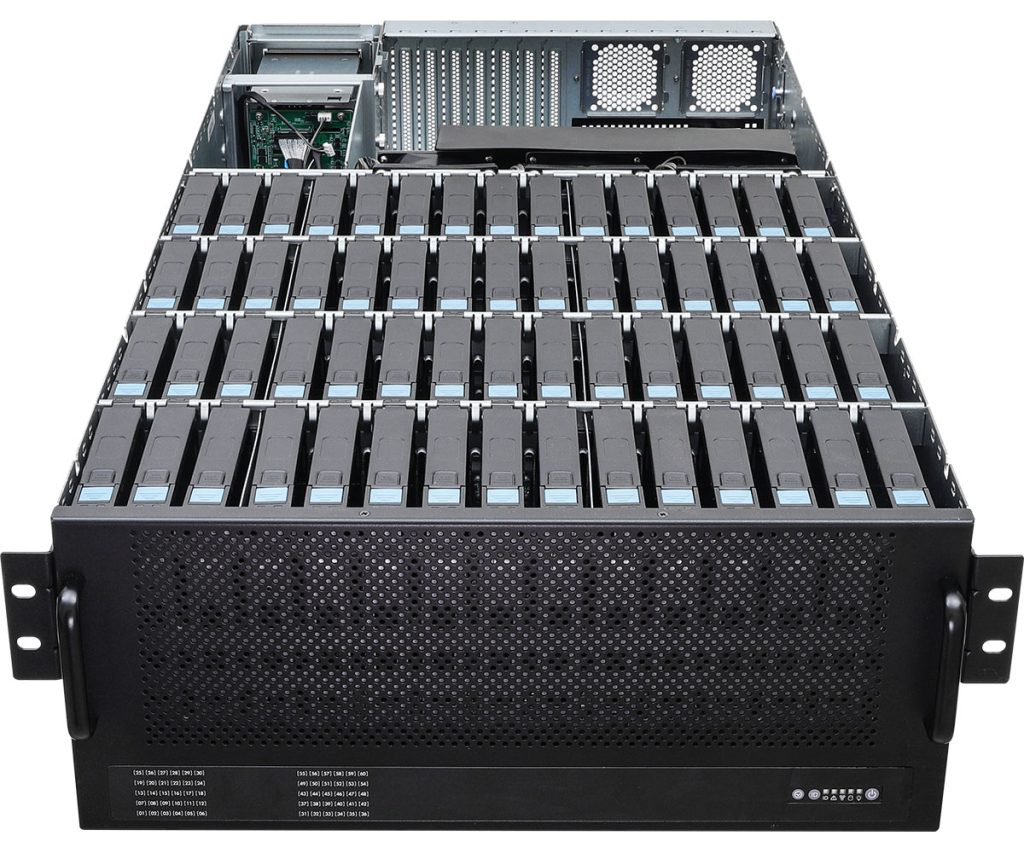

ASRock 4U60L8E-GENOA/2T (BTO)
4U top-loading storage server with 60 hot-swap 3.5″ SAS/SATA bays and PCIe 4.0 storage server with high storage density and efficient computer power. Powered by AMD EPYC 9005/9004 processor
- Remote management (IPMI)
- 2 RJ45 (10GbE) by Intel® X550-AT2
- Supports 2 M.2 (PCIe5.0 x4)
- 4 FHHL PCIe5.0 x16
- 8 Hot-swap 2.5″ NVMe (PCIe5.0 x4) drive bays
- Up to 60 Hot-swap 3.5″ SATA/SAS drive bays
- 8 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
- Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005*/9004 (with AMD 3D V-Cache™ Technology) and 97×4 series processors
- 4U Rackmount with 2+2, 80-PLUS Platinum, 800W CRPS
Specifications
Processor / System Bus
1 x Socket SP5 (LGA 6096)
AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97×4 series processors
* Up to 500W TDP, TDP support varies by configuration
Form Factor
4U
Memory
Supported DIMM Quantity
8 DIMM slots (1DPC)
Supported Type
Supports DDR5 288-pin RDIMM, RDIMM-3DS
Max. Capacity per DIMM
RDIMM: 128GB (2Rx4)
RDIMM-3DS: 512GB (2Rx4)
Expansion Slots
4 FHHL PCIe5.0 x16
Storage
Rear Side
8 Hot-swap 2.5” NVMe (PCIe5.0 x4) drive bays* *Supports TA@30C
Rear Side Backplane
8-ports NVMe passive backplane
Internal Side
60 Hot-swap 3.5″ SATA/SAS drive bays*
2 M-key (PCIe5.0 x4); support 2280/2260/2242/2230 form factor
*Additional RAID/HBA card required to support the 60 x 3.5″ SATA/SAS drives
Internal Side Backplane 2 x 30-port 12G SAS backplanes with 40-PHY expander
Front I/O Ports
Power, HDD Activity, LAN Activity, System Fault, ID
System Power ON/OFF, System Reset, ID
Rear I/O Ports
1 UID button
1 DB15 (VGA)
2 Type-A (USB3.2 Gen1)
2 RJ45 (1GbE) 1 dedicated IPMI
Power Supply
2+2 redundant 800W 80 PLUS Titanium power supply
20-240 Vac, 16A (x4) 50/60Hz
